    Water Cooled Resonant Capacitor 1.30uf 900v 400kvar

    Ask Lasest Price
    Brand Name : GDHY
    Model Number : C41901135KBC5401-02
    Certification : SGS,ISO
    Price : PLEASE CONTACT US FOR DETAILS
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 15 WORKING DAYS
    • Product Details
    • Company Profile

    Water Cooled Resonant Capacitor 1.30uf 900v 400kvar

    Water Cooled Resonant Capacitor 1.30uf 900v 400kvarC41-BC5 POWER FILM CAPACITORS 1.30UF 900VRMS (ALCON FP-3-400) CAPACITOR FACTORY


    Technical Parameter

    Capacitance1.30μF
    Rated capacitance100kVar-1500kVar
    Rated Voltage400vac-1100vac
    Dimension (mm)60*60*30.2
    Reference StandardsGB/T 3984-2004 IEC 60110.1
    Operating Temperature Range-40℃~85℃
    Tolerance±5%/±10%
    Test Voltage between Terminals1.5UNAC 10s
    2~3.5UNDC 10s at 25±5
    Dissipation Factortgδ≤5×10-4 at 25℃±5℃,1kHz
    Insulation ResistanceR•C≥3000s,at 100VDC,25℃±5℃,60s
    Life Expectancy100000h at UN and 70℃,30000h at Urms

    Specification download: C41-BC5.pdf


    Application

    This product can be used in medical imaging, induction heating, electric cars, resonant tank circuits, EV charging, heat treatment, high frequency and high ripple current applications like high frequency PWM inverters, high KVA Online UPS, etc.


    Feature


    ● Conduction water-cooled

    Self-healing, excellent performance

    ● Polypropylene dielectric

    ● Low dissipation factor(tgδ), low ESL/ESR

    ● High voltage, frequency and high dV/dt

    ● Excellent heat dissipation

    ● Maximum operating core temperature 85

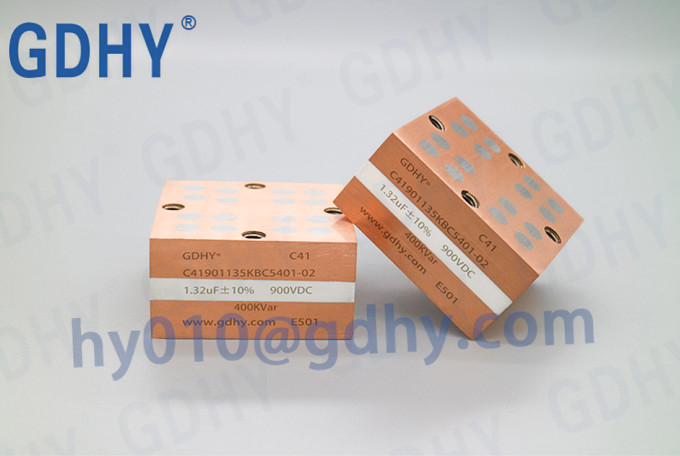

    Product Picture


    Water Cooled Resonant Capacitor 1.30uf 900v 400kvar


    Product Shape


    C41-BC5 0.33UF/700Vrms/300Kvar for induction heating (FP-8-300-4H/Celem CSP305B)High Frequency Capacitor 1
