Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor

    Buy cheap Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor from wholesalers

    Buy cheap Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor from wholesalers
    • Buy cheap Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor from wholesalers
    • Buy cheap Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor from wholesalers

    Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor

    Ask Lasest Price
    Brand Name : GDHY
    Model Number : C42401474JX08-01
    Certification : SGS,ISO
    Price : PLEASE CONTACT US FOR DETAILS
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 15 WORKING DAYS
    • Product Details
    • Company Profile

    Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor

    Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant CapacitorP27.5 474/400VDC 5% SELF HEALING AND HIGH STABILITY RESONANT CAPACITOR

    Technical Parameter


    Reference standardsGB/T 17702 IEC 61071
    Capacitance range0.47μF
    Rated DC voltage400VDC
    Pitch27.5MM
    Operating temperature range-40℃~+85℃, TOP MAX: +105℃
    Dissipation factortgδ≤0.0005 C≤1μF f=10KHz at 20℃
    Withstand voltage1.5Ur(DC)60S 20℃
    1000+2×Ur/√2(VAC) 50Hz 60S(1min 3000V)
    Tolerance±5%(J); ±10%(K)
    Insulation resistanceC≤0.33μF Rs≥15000MΩ(20℃ 100VDC 60S)
    Flame RetardationUL94V-0
    Life Expectancy100000hrs ( Ur hotspot ≤ 85℃)


    Datasheet download: C42.pdf

    Application

    This series product can be used in series/parallel resonant circuit of power electronic equipment, and it could be applied to the peak voltage of the switching equipment in power electronics, peak current absorption protection.


    Feature

    Tinned copper wire, easy installed

    Plastic case package, epoxy resin filling

    ● Small dissipation factor (tgδ), small temperature rising

    ● Self healing, high stability, high

    Low ESL and ESR, High pulse current, high dV/dt,


    Product Picture

    Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant CapacitorSelf Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor

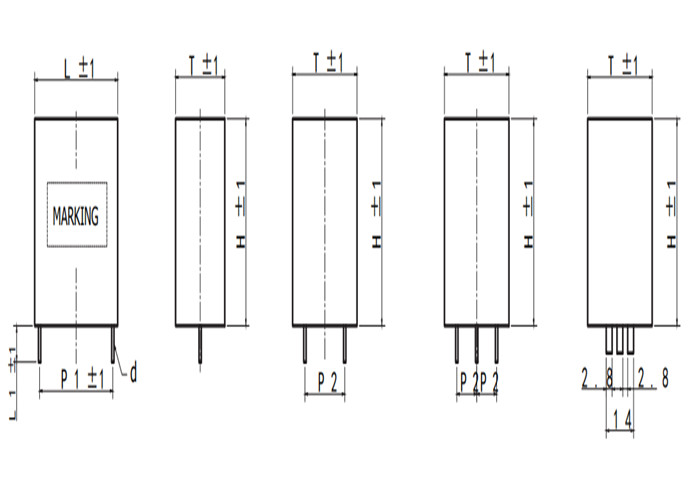

    Product Shape


    Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor


    Production

    Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor


    Workshop&Equipment

    Self Healing P27.5mm 400vdc 0.47uf ±5% Resonant Capacitor


    Packing method
