    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage

    Ask Lasest Price
    Brand Name : GDHY
    Model Number : CBB81 682/1KV P15
    Certification : SGS,ISO
    Price : PLEASE CONTACT US FOR DETAILS
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1KKPCS/MONTH
    Delivery Time : 14 DAYS
    • Product Details
    • Company Profile

    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage

    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High VoltageCBB81 POLYPROPYLENE FILM CAPACITORS 682J1KV P15 LIGHTING LED POWER SUPPLY


    Technical Parameter


    Reference StandardsGB/T 14579(IEC 60384-17)
    Capacitance0.0068μF/6800PF
    Rated Voltage1000VDC
    Operating Temperature Range-40℃~85℃ Tmax 105℃
    Tolerance±5%(J);±10%(K)
    Dissipation Factortgδ≤0.0010(20℃,1KHz)
    Withstand voltageVt-t:1.75UN 5S (at20 ±5℃)
    Insulation Resistance≥50000MΩ (at20℃ 1Min)
    Maximum Pulse Rise Time

    20000V/μS


    Datasheet available: CBB81.pdf


    Application


    ● Widely used in LED power supply, Electronic ballast, display, color TV reverse circuit, LED lighting, etc.

    ● Also can be used in high pulse, high current circuits, high frequency, DC, AC.

    For applications that require small size.


    Features


    ● Metallized polypropylene film foil dielectric,Non-inductive winding structure

    ● Negative electricity capacity temperature ratio

    ● Excellent flame retardant epoxy resin powder encapsulation

    ● Small tgδ, low internal temperature rise

    ● High voltage metallized polypropylene film/foil capacitors

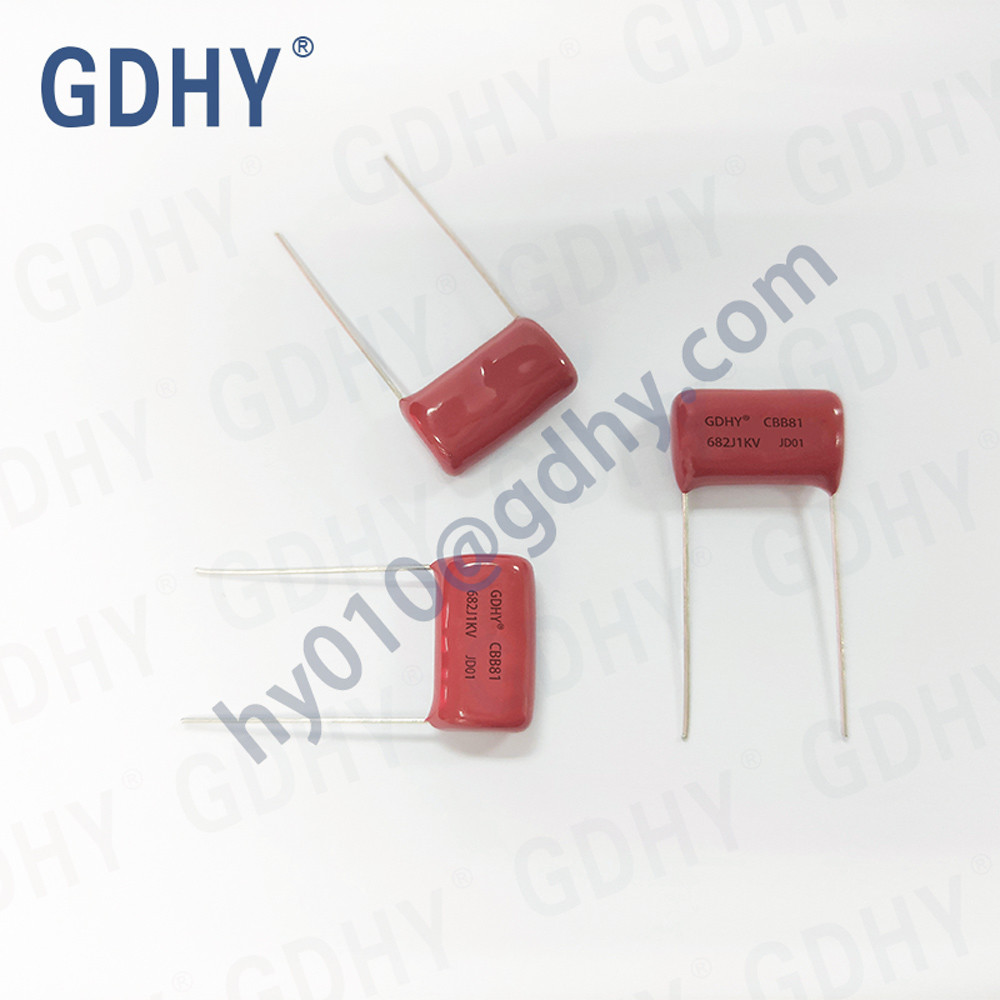

    Product Picture


    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High VoltageLighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage


    Product Shape


    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage


    Produce Line


    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage


    Workshop&Equipment


    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage


    Exhibition

    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage

    Certification


    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage


    Packing Method


    Lighting Polypropylene Film Capacitors 1000V 682J 1KV 6800PF 6.8NF P15 CBB81 High Voltage
