    Welding Machine Resonant Metalized Film Capacitor 4uf 600vac 1600vdc

    Ask Lasest Price
    Brand Name : GDHY
    Model Number : C44601405JF01M6-01
    Certification : SGS,ISO
    Price : USD 7.4/PCS
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 14 DAYS
    • Product Details
    • Company Profile

    Welding Machine Resonant Metalized Film Capacitor 4uf 600vac 1600vdc

    Welding Machine Resonant Metalized Film Capacitor 4uf 600vac 1600vdcC44 RESONANT CAPACITORS 4UF/600VAC/1600VDC 70A 5% WELDING MACHINE HIGH FREQUENCY


    Technical Parameter

    Reference StandardsIEC 61071.IEC60110
    Operating Temperature Range-40℃~85℃ Tmax 105℃
    Capacity Range4.0 μF
    Rated Voltage1600VDC
    Capacity Tolerance±5%(J);
    Withstand Voltage1.5Un DC/10S
    Dissipation Factortgδ≤0.0010 C≤1μF f=10KHz at 20℃
    Insulation ResistanceRsC≥5000S (20℃ 100VDC 60S)
    Flame RetardationUL94V-0
    Life Expectancy100000hrs ( Un hotspot ≤ 70℃)


    Specification download: C44-small size.pdf


    Application

    • Applied in resonance occasions, such as welding power supplies, induction heating equipment, etc.
    • Widely used series circuits or parallel resonant circuites of power electronic devices.

    Feature

    • Plastic case coating, epoxy resin filling
    • Small size and convenient installation
    • Leads with the tinned copper nut
    • Self healing
    • Good performance
    • Can stand for High-frequency and high current.
    • Low ESL, low ESR.
    • High pulse current, high dv/dt ehdurance

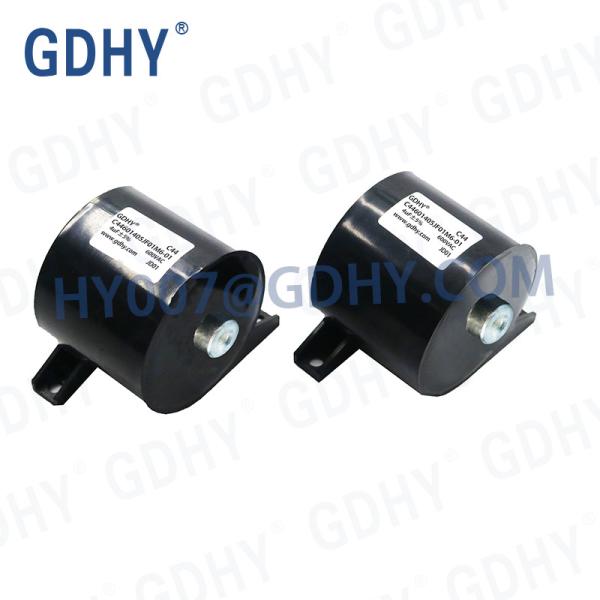

    Product Picture
