    P35 3000VDC 5% 0.45UF Resonant Capacitor Self Healing

    Ask Lasest Price
    Brand Name : GDHY
    Model Number : C42302454JP34-01
    Certification : SGS,ISO
    Price : USD 5.9/PCS
    Payment Terms : Western Union, T/T, MoneyGram
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 14 DAYS
    • Product Details
    • Company Profile

    P35 3000VDC 5% 0.45UF Resonant Capacitor Self Healing

    P35 3000VDC 5% 0.45UF Resonant Capacitor Self HealingC42 0.45UF/3000VDC 5% P35 CAPACITOR BANK PARALLEL RESONANCE SMALL DISSIPATION POWER ELECTRONICS HIGH DV/DT SELF HEALING


    Technical Parameter


    Reference StandardsGB/T 17702 IEC 61071
    Operating Temperature RangeMax.Operating temperature,Top max:+105℃
    Upper category temperature:+85℃
    Lower category temperature:-40℃
    Capacity Range0.1μF~8.0μF
    Rated Voltage400VDC~3000VDC
    Capacity Tolerance±5%(J); ±10%(K)
    Test Voltage between Terminals1.5Ur(DC)60S 20℃
    Test Voltage btw Terminals & Case1000+2×Ur/√2(VAC) 50Hz 60S(1min 3000V)
    Dissipation Factortgδ≤0.0005 C≤1μF f=10KHz at 20℃
    tgδ≤0.0010 C≥1μF f=10KHz at 20℃
    Insulation ResistanceC≤0.33μF Rs≥15000MΩ(20℃ 100VDC 60S)
    C>0.33 μF RsC≥5000S (20℃ 100VDC 60S)
    Flame RetardationUL94V-0
    Life Expectancy100000hrs ( Ur hotspot ≤ 85℃)


    Specification download: C44-small size.pdf


    Application


    ● Widely used in series circuits or parallel resonant circuits of power electronic devices.

    ● Also applied to the peak voltage of the switching device in power electronics, peak current absorption protection.


    Feature


    ● Plastic shell encapsulation, epoxy resin sealed

    ●Tinned copper wire, small size, easy installation

    ● High voltage resistance, small dissipation factor (tgδ)

    ● Low ESL and ESR, low temperature rise

    ● High pulse current, high dV/dt, high stability, self healing

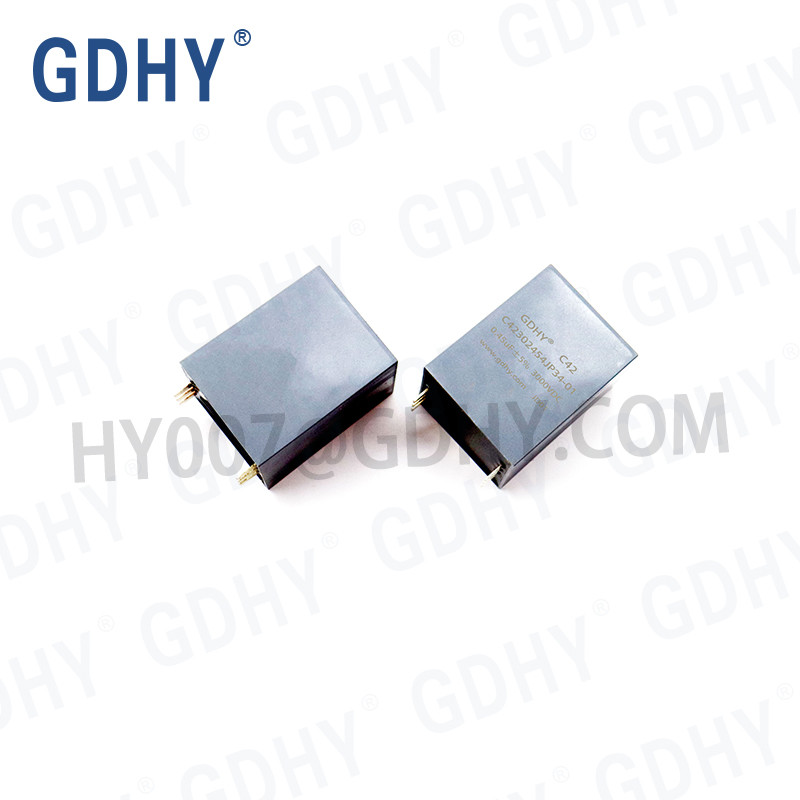

    Product Picture
